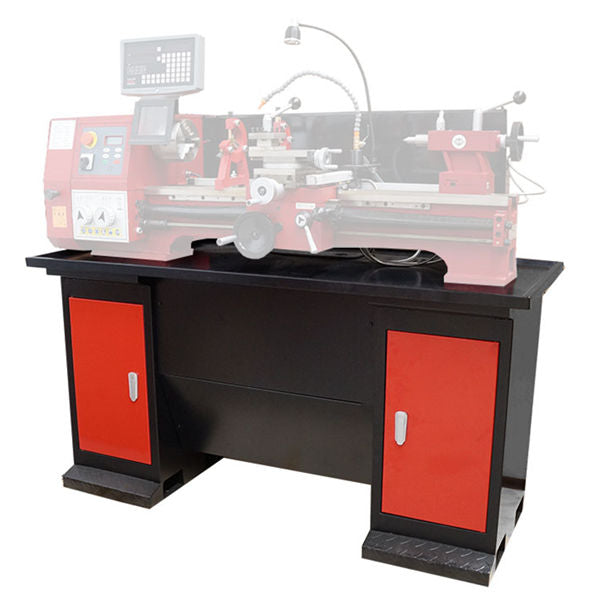

This quality machine stand is for C8 / SC8 and C10 / SC10 lathe.
Fabricated from sheet steel and is supplied with two parts: the stand and the oil tray. It is designed to be bolted to the floor for stability and includes two useful cupboards to store your bits and pieces.
Overall Size: 1550x560x770mm
(Machine Not Included)

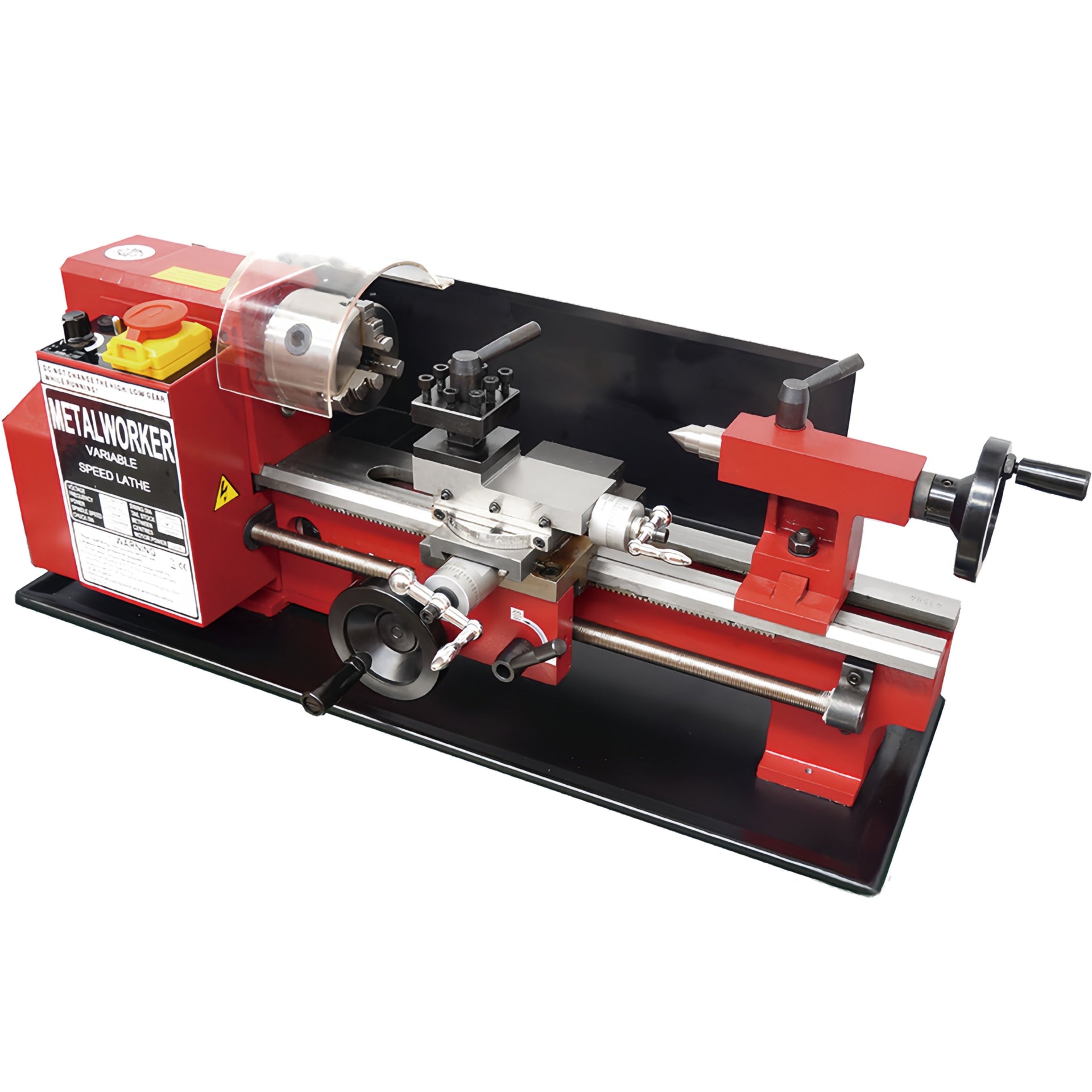

Features:
4 Way Tool PostVariable SpeedSwitched Chuck GuardHigh / Low GearForward / Reverse Auto FeedOverload ProtectionEmergency Stop ButtonHigh Quality Cast Iron BedSpecification:
Swing Over Bed
180mm
Distance Between Centres
300mm
Spindle Bore
20mm
Spindle Taper
MT3
Tailstock Taper
MT2
Cross Slide Travel
65mm
Compound Slide Travel
55mm
Power Rating
400W
Output
250W DC
Metric Range of Threads
0.4-2.0mm (10Thread Pitches)
Spindle Speed -High Gear
100-2500rpm
-Low Gear
100-1100rpm
Overall Dimension
700x300x300mm
Weight ( Net / Gross )
37/40kg
Standard Accessories:80mm 3-Jaw Self-Centring ChuckMT2 Dead CentreMetric Change Gear SetOil TrayWrench Set
Starter Kit Includes (Optional):
8x8mm Carbide Tipped 11pcs Lathe Tool Set
8mm Parting Off Tool
Key type Drill Chuck, B16 1-13mm
MT2/B16 Drill Chuck Arbor
HSS Drill Bit 1-10mm set 19pc set, 0.5mm increment. (Split Head from 3mm up)
HSS Centre Drill Set 4pcs Set 1.6-4mm
MT2 Revolving Centre
1 Year Extended Warranty Now Available! Click to learn more.
This thread chasing dial allows you to easily engage the half nuts at the correct point when cutting threads, ensuring accurate and repeatable results. Supplied with an indicator table for quick reference, it is designed specifically for SIEG C2 and C3 lathes.( NOT suitable for SC2 and SC3 )

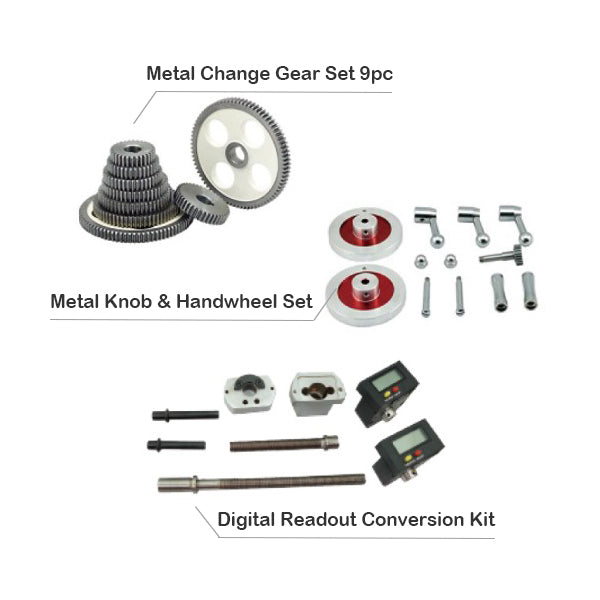

This practical upgrade kit is suitable for SIEG C2, C3, SC2 and SC3 mini lathe. Set Includes:

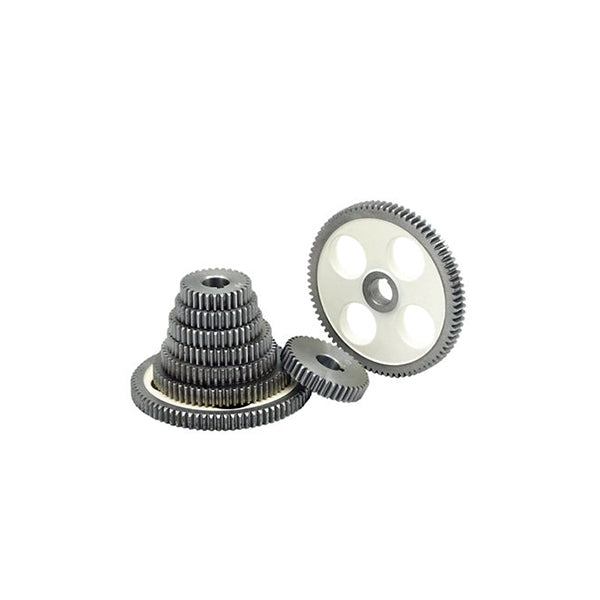

Metal Change Gear Set 9pc

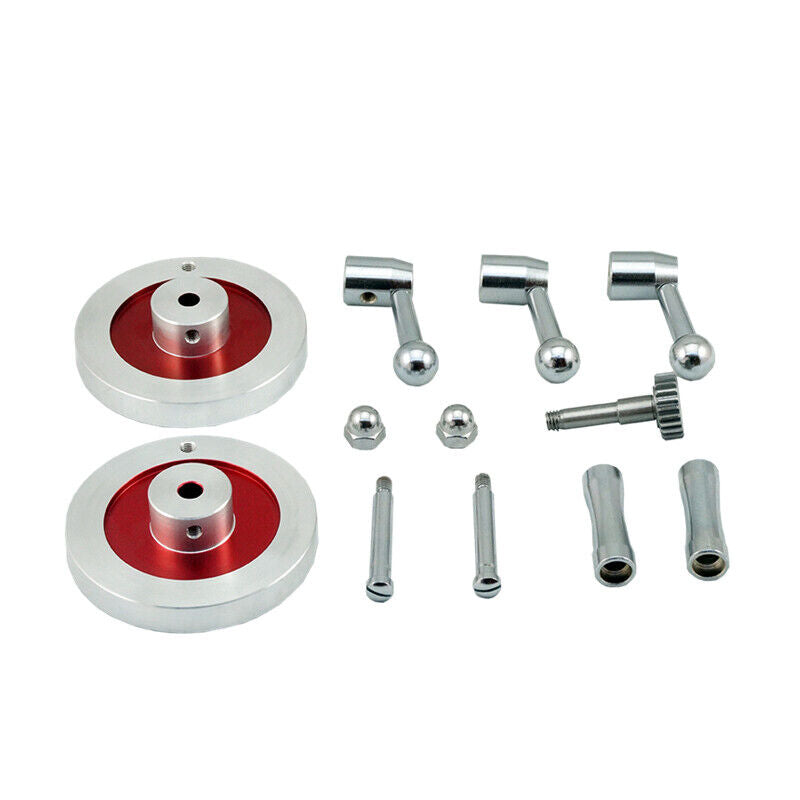

Metal Knob & Handwheel Set
Digital Readout Conversion Kit
Upgrade your SIEG C2, C3, SC3, or similar-sized lathe with this efficient quick-change tool post. Includes the tool post body and 3 standard holders for 8x8mm lathe tools
Key Benefits:
Rapid Tool Changes: Swap tools in seconds, eliminating tedious setup.
Perfect Fit: Designed specifically for SIEG C2/C3/SC3 lathes and compatible similar models. (80-100mm center height)
Essential Kit: Get started immediately with the 3 included holders.

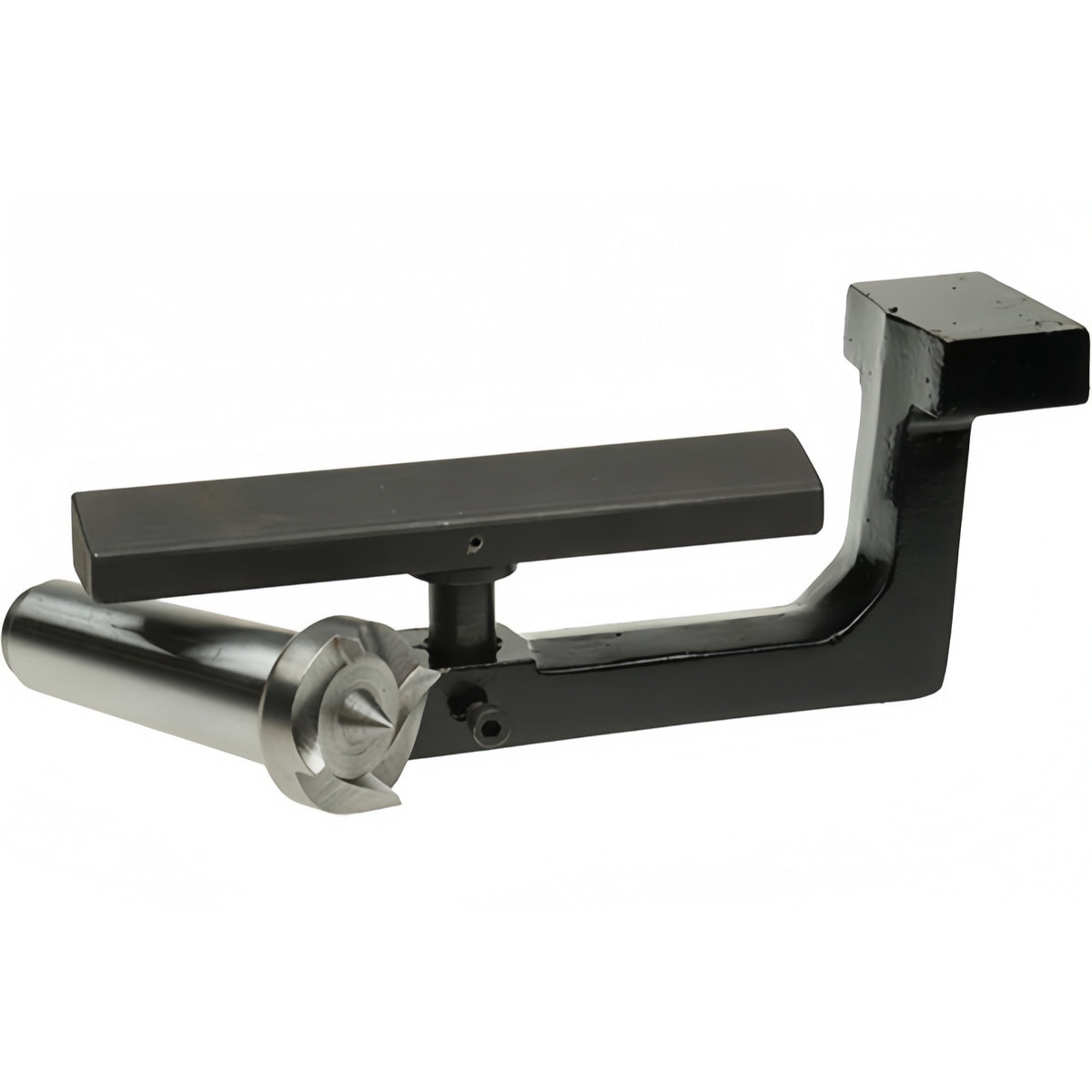

Transform your metal-working mini lathe into a wood lathe with this complete tool rest and spur center set.
The tool rest clamps securely into any standard tool post, offering full 360-degree rotation and adjustable height for precise control.
The included spur center features a #3 Morse taper for a direct, chuck-free fit into the lathe spindle. Perfect for turning small wood projects on a bench lathe.
Specifications
Overall Length (with rest): 171.5mm
Tool Shank: 12mm
Tool Rest Length: 130mm
Adjustable Tool Rest Height: 0 to 35mm
Tool Post to Center of Rest: 92.0mm
Spur Center Overall Length: 89mm
Spur Center Taper: #3 Morse (MT3)

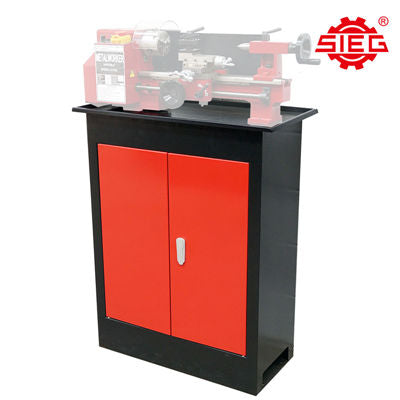

This quality machine stand is for C2/300 and C3/300, SC2/300 lathe.
Fabricated from sheet steel and is supplied with two parts: the stand and the oil tray. It is designed to be bolted to the floor for stability and includes a large useful cupboards to store your bits and pieces.
Overall Size: 860x310x890mm
(Machine Not Included)
This quality machine stand is for C3 and SC3/350, SC3/400 and SC20 lathe.
Fabricated from sheet steel and is supplied with two parts: the stand and the oil tray. It is designed to be bolted to the floor for stability and includes a large useful cupboards to store your bits and pieces.
Overall Size: 860x310x890mm
(Machine Not Included)

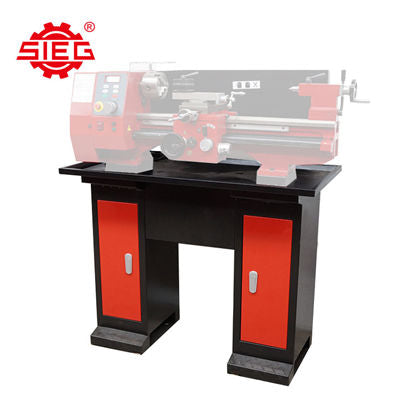

This quality machine stand is for C4 and SC4 lathe.
Fabricated from sheet steel and is supplied with two parts: the stand and the oil tray. It is designed to be bolted to the floor for stability and includes two useful cupboards to store your bits and pieces.
Overall Size: 1010x505x780mm
(Machine Not Included)
Upgrade your SIEG C4, SC4, or similar-sized lathe with this efficient quick-change tool post. Includes the tool post body and 3 standard holders for 10x10mm lathe tools
Key Benefits:
Rapid Tool Changes: Swap tools in seconds, eliminating tedious setup.
Perfect Fit: Designed specifically for SIEG C4/SC4 lathes and compatible similar models. (80-120mm center height)
Essential Kit: Get started immediately with the 3 included holders.
Expandable: Easily add parting or boring capabilities with optional holders.
Expand your capabilities with optional holders:
Parting Blade Holder: Holds 1/2" height parting blades.
Boring Bar Holder: Accepts 3/8" bars (with sleeve) or 1/2" bars (without sleeve).
Features:
Leadscrew GuardCuts Metric & Imperial ThreadsEmergency Stop ButtonSwitched Chuck GuardHeavy Duty Cast Iron BedMetal GearsSpecifications:
Swing Over Bed
250mm
Distance Between Centres
550mm
Spindle Bore
20mm
Spindle Taper
MT3
Tailstock Taper
MT2
Cross Slide Travel
110mm
Compound Slide Travel
75mm
Power Rating
1000W
Output
550W DC
Range of Threads - Metric
0.4-3mm (12 Thread Pitches)
- Imperial
10-44TPI (8 Thread Pitches)
Spindle Speed
125-2000rpm (6 step)
Overall Dimension
1170x640x580mm
Weight ( Net / Gross )
165/180kg
Standard Accessories:125mm 3-Jaw Self-Centering ChuckMT2 Dead CentreMT3 Spindle CentreFix Steady & Travelling SteadyFace PlateChange Gear SetWrench Set
Starter Kit Includes (Optional):
TiN Carbide Indexable Turning Tools 7pcs Set
Quick Change Tool Post with 3 Tool Holders ( Tool post with 3xRegular holders)
8mm Parting Off Tool
Keyless Drill Chuck, JT3, 1-16mm
MT2/JT3 Drill Chuck Arbor
HSS Drill Bit 1-6mm 51pcs Set, 0.1mm inc. Split Head from 3mm up
HSS Drill Bit 6-10mm 41pcs Set, 0.1mm Inc. Split Head
HSS Centre Drill Set 4pcs Set 1.6-4mm
MT2 Revolving Centre
1 Year Extended Warranty Now Available! Click to learn more.
