High Speed Steel - Left Hand Drill Bits. Commonly used for removing broken fasteners. Rotation with anticlockwise.
Drill bits range between 80mm to 110mm overall length.
10pc Screw Extractor & Left-hand Drill Bit Set
Comprehensive extractor & matching drill set in one kit
Left turning, reverse drill prevents further tightening of the bolt or screw while preparing the extraction hole
Cobalt fortified, High Speed Steel Left-hand drill bits for increased durability & service life
Alloy, spiral flute extractors easily remove broken or seized bolts, screws, studs & other types of fittings
Handy metal carry case keeps the set secure & ready to use

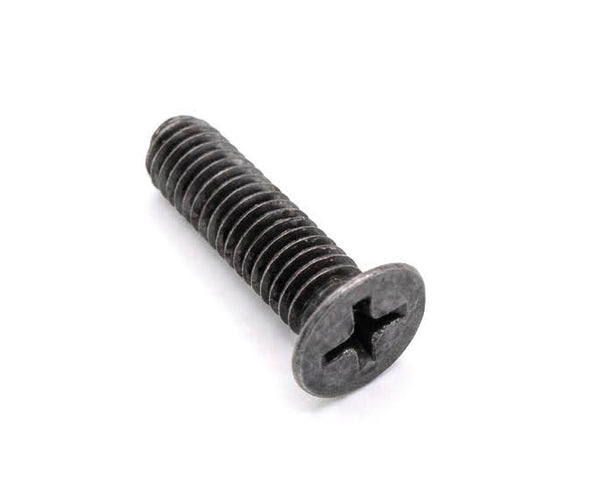

Phillips head reverse left-hand thread countersink bolt, M5 x 20mm, sourced from factory sealed drill chucks.
Features M5 x 0.8 reverse threading for drill chuck applications. Approximately 19 - 20mm in length. Ideal for replacement or repair work in precision drilling equipment.
FLEXPRO 10pc LEFT HAND REVERSE COBALT HSS DRILL BIT SET
Made from industrial quality M35 Cobalt high speed steel.
These drill bits feature a unique left-handed (reverse) flute and are designed to drill out and remove broken bolts and studs.
To use simply put your drill in reverse and most of the time the drilling action will remove the broken bolt without the need for an easy out, saving you time and effort.
Made from M35 Cobalt the drill Bits are ideal for hardened metals including high tensile bolts and stainless-steel fasteners
Features
Heavy Duty Left-Hand Spiral Flute Design - Promotes Faster Chip Ejection
Shorter Cutting Lips designed to reduce Torque for Drilling in High Tensile Strength Materials
M35 Cobalt Alloy Construction Keeps the Drill Bit from Overheating, Increasing Durability in Hard Metal
Cobalt HSS Formula - Improves abrasive & Heat Resistance, for Increased Strength
135° Split Point Self-Centering point
Metric Sizes: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm, 9mm, & 10mm
INSIZE 15pc LEFT HAND DRILL BIT SET ETIN0004
Made from High-speed steel Left-handed drill bits are useful for drilling out broken and sheared bolts and studs.
These unique drill bits are used with your drill operating in reverse and when operated at low speeds the bit will quite often.
remove the broken bolt or stud without having to resort to using an easy out or extractor, saving you time and effort.
Left hand Drill bits are very popular in the automotive, mechanical and farming industries and are a very handy set to have in the workshop and are primarily used for drilling out jammed or rusted bolts, studs etc.
They will sometime cause the thread to "walk out". The principle is the same as "screw extractors” or “Ezy-outs". Bright finish, HSS M2 grade drill bits are precision ground with a 118 degree split point. Quick and efficient swarf clearance allows clog-free precision drilling. Ideal for use on metals, copper, plastics and wood. Drills are manufactured to comply to DIN338 standard. Sets are supplied in heavy duty case
Features & Specs
M2 High speed steel
Left hand reverse flute.
15pc
Sizes: 1.5, 2, 3, 4, 4.5, 5.5, 6, 7, 7.5, 8.5, 9.5,10, 11,11.5 and 12.5 mm
Use For: Steel, alloys, plastic.
To use: simply insert the drill bits into your drill and operate the drill in reverse at low speed.
BORDO 5pc COBALT LEFT HAND DRILL BIT SET 2005-S1
These unique drill bits are used with your drill operating in reverse and are designed to aid in drilling out broken and sheared bolts and studs.
The reverse drilling action quite often will remove the broken bolt or stud on its own without having to resort to using an easy out or extractor thus saving you time and effort.
Left hand Drill bits are very popular in the automotive, mechanical and farming industries and are a very handy set to have in the workshop
Made from Cobalt High speed steel these bits will even steel and stainless steel
The set comes packed in plastic case making them compact and saving you space in your toolbox
FEATURES & SPECS
Split point machine sharpened to reduce bit wander.
Black finish
Sizes: 5/64", 7/64", 5/32", 1/4" & 19/64"
135º split point for extra gripping power
Fully ground HSS Cobalt increases strength & drill life
For the removal of damaged screws, stud & bolts. Left hand drill bits remove fasteners or creates the pilot hole required for a screw extractor. If the LEFT HAND DRILL does not remove the fastener, the hole drilled becomes the preparation for a screw extractor. The opposite direction flute enables the broken fastener to be gripped and wound out of the hole. The opposite direction flute permits reverse drilling, which stops the fastener being driven tighter. Ensure drill is run in reverse
ALPHA 5pc COBALT LEFT HAND DRILL BIT SET 9COL-SET5
These unique drill bits are used with your drill operating in reverse and are designed to aid in drilling out broken and sheared bolts and studs.
The reverse drilling action quite often will remove the broken bolt or stud on its own without having to resort to using an easy out or extractor thus saving you time and effort.
Left hand Drill bits are very popular in the automotive, mechanical and farming industries and are a very handy set to have in the workshop
Made from Cobalt High speed steel these bits will even steel and stainless steel
The set comes packed in plastic case making them compact and saving you space in your toolbox
FEATURES & SPECS
Split point machine sharpened to reduce bit wander.
Black finish
Sizes: 5/64", 7/64", 5/32", 1/4" & 19/64"
135º split point for extra gripping power
Fully ground HSS Cobalt increases strength & drill life
For the removal of damaged screws, stud & bolts. Left hand drill bits remove fasteners or creates the pilot hole required for a screw extractor. If the LEFT HAND DRILL does not remove the fastener, the hole drilled becomes the preparation for a screw extractor. The opposite direction flute enables the broken fastener to be gripped and wound out of the hole. The opposite direction flute permits reverse drilling, which stops the fastener being driven tighter. Ensure drill is run in reverse

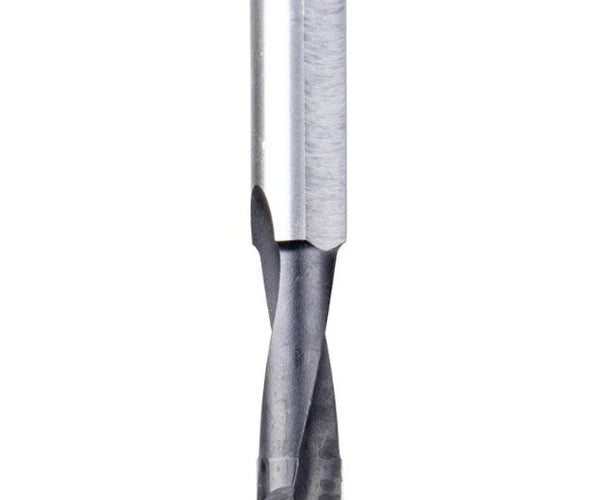

Engineered with a carbide tip for superior durability, this 10mm shank doweling bit delivers precision drilling in hardwood applications. The brad point design ensures clean, accurate holes while resisting wear far longer than standard drill bits. Built to handle demanding woodworking projects with consistent performance.
Available in both left and right hand rotation.

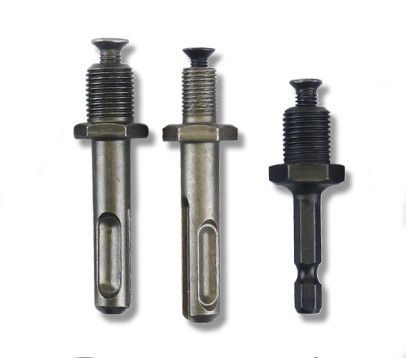

These Change Adaptors allow you to attach the 1/4" hex shank or SDS shank to your chuck. It fits all power bit quick change chucks.
Adaptor has a left-hand thread screw for locking the chuck while the 3/8"-24UNF / 1/2"-20UNF thread chuck adaptor can be connected to a normal drill chuck for quick changing or SDS Fitting Power Tools.
(Chuck not included)

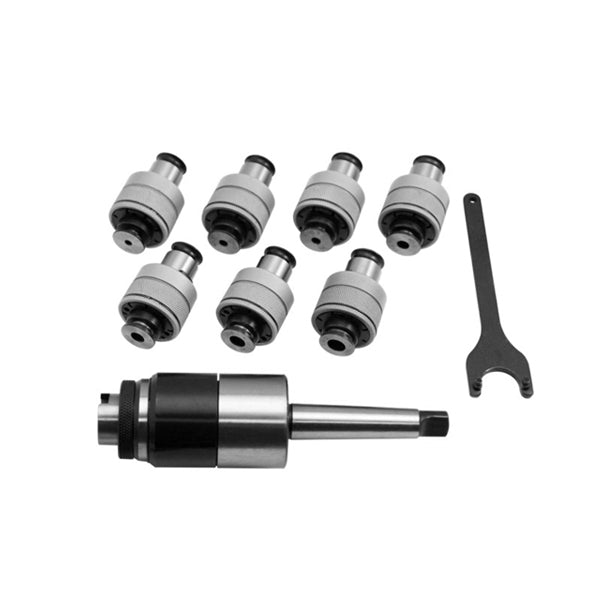

This high-precision modular tapping chuck set is the ideal solution for producing accurate, high-quality threads in a variety of machining environments. Designed for efficiency and tool protection, the system features a built-in adjustable torque limiter to prevent tap breakage and a floating holder to correct any misalignment between the spindle and the pre-drilled hole.The modular design allows for rapid tool changes, utilizing quick-change collets that eliminate the need to remove the chuck from the machine spindle when changing tap sizes.
Key Features:
Quick-Change Collet System: Includes a complete set of 7 precision collets for fast and secure tap changes, maximizing machine uptime.
Adjustable Torque Limiter: Protects expensive taps from overload and breakage caused by dull taps, chips, or bottoming out in blind holes. The torque can be easily adjusted to suit the material and tap size.
Versatile Threading: Suitable for both right-hand and left-hand threading operations.
Compensating Floating Holder: The chuck design allows for radial float and axial compensation, ensuring perfect thread concentricity and extending tap life.
Multi-Machine Compatibility: Robustly constructed for use in CNC mills, manual milling machines, drill presses, lathes, and boring machines.
Complete Ready-to-Use Set: Supplied with a full range of metric tap collets from M3 to M12, providing exceptional value.
Arbor Type
MT2
MT3
R8
Product Code
020-050-10100
020-050-10150
020-050-10250
Tapping Range
M3 – M12
Body Diameter
46 mm
Included Collets
M3, M3.5, M4, M5-M6, M8, M10, M12 (Total 7 Collets)
Torque Limiter
Yes (Adjustable)
Thread Direction
Right & Left Hand
Overall Length
171.5 mm
191 mm
216 mm
Chuck Body Length
96.5 mm
97 mm
92 mm

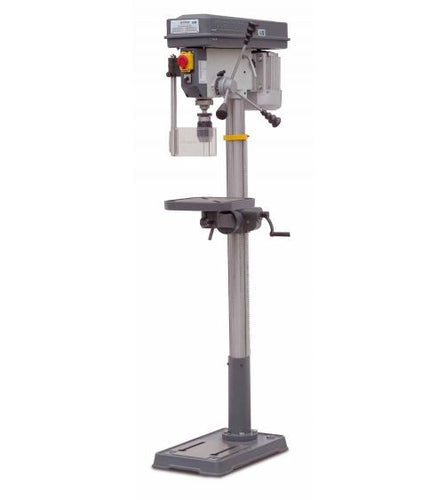

PRODUCT DESCRIPTION
Guaranteed concentricity precision less than 0.03 mm measured in the drilling spindle sleeve
Spindle with precision ball bearings
Quantum high-grade quick-action drill chuck with concentricity precision less than 0.09 mm supplied as standard (from B 14 onwards)
Smoother running due to aluminum pulleys with ground six-tooth dog (from B 14 onwards)
Better power transmission due to the quality driving V-belt
Long, ergonomically designed lever arm handles with softgrip for nonskid working
Drill depth stop
Precision-ground work table with transversally running T-slots, swivelling from -45° to +45° with 360° rotatability
Solid, heavy duty base plate with T-slots, heavily ribbed at the backside
T-slots for holding a vice supplied as standard (from B 14 onwards)
400 Volt models additional with right-left-hand rotation
Powerful, smooth-running electric motors (from B 14 onwards)
Proven quality
Model
optimum / toptech B 25
Drilling capacity in steel (max.)
20 mm
Working range
170 mm
Distance spindle / table (max.)
760 mm
Spindle holding fixture
MT 3
Spindle speeds
210 - 2220 rpm
Number of steps
12 steps
Sleeve travel
80 mm
Upright diameter
70 mm
Table size (L x W)
275 x 275 mm
T-slot size
14 mm
Drilling table swivel
+ / - 45°
Motor power 50 hz
550 W / 0.75HP
Dimensions (L x W x H)
690 x 390 x 1570 mm
Net weight
63 kg
